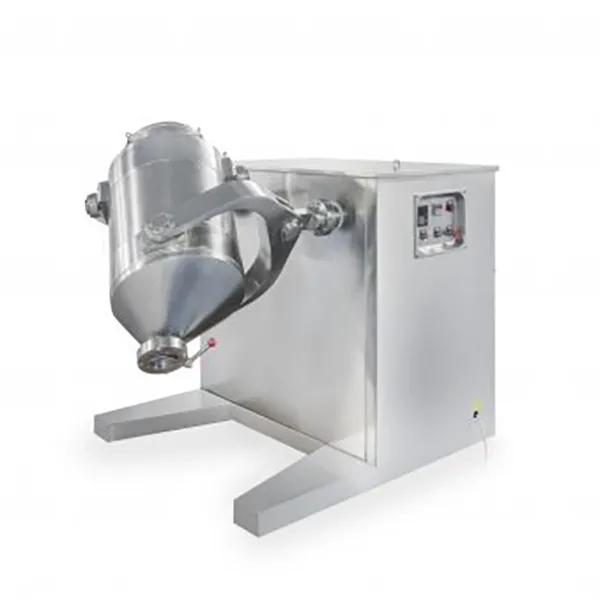

High Capacity Dry Powder Mixer Blending Machine RawCN-Mix
D100/200/300/400/600
The RawCN-Mix D series mixer is widely used in pharmacy, chemical industry, food industry, scientific research, etc. It is suitable for mixing dry-powder or granular materials with good flowing properties.
As the mixing vat is able to make multidirectional motion, it makes raw materials inside the vat has many cross-mixing points, therefore the mixing effect is better. Its degree of uniformity can achieve above 99.9%. The max. loading efficiency can be 0.9 ( The loading efficiency of ordinary mixer is 0.4-0.6). The mixing time is short and efficiency is high. The material are mixed in an enclosed state with no contamination to the working environment and materials.
Description
Specification
Model
Vat volume(L)
Max. Filling volume(L)
Best Filling volume(L)
Rotational speed(r/min)
Power (kw)
Weight (kg)
Dimensions
(mm)
RawCN-Mix D100
100
80
50
0-20
1.5
500
600×1800×1500
RawCN-Mix D200
200
160
0-16
2.2
800
1400×2000×1650
RawCN-Mix D300
300
240
150
3
1000
1600×2100×1700
RawCN-Mix D400
400
320
4
1200
1700×2300×1800
RawCN-Mix D600
600
480
0-12
5.5
1500
1850×2500×1900
