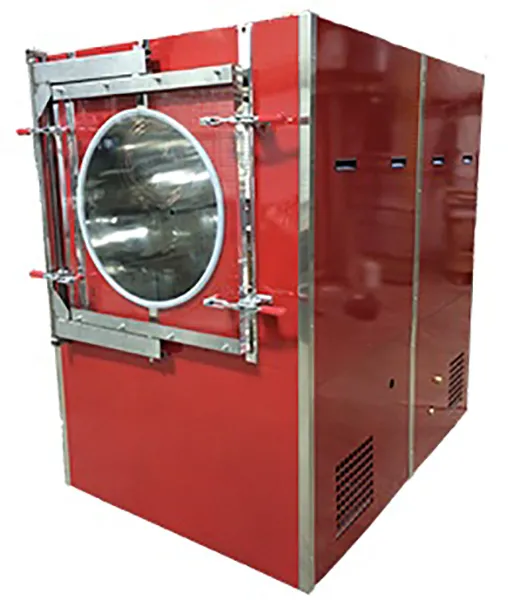

Stratus MP3 Freeze Dryer
Stratus MP3 Freeze Dryer
The STRATUS MP3® Large freeze dryer is a system available with shelf level temperature control or chamber drum configurations.
It is a fully configurable pilot / production system, available with or without stoppering with up to ten 24" x 36" shelves.
STRATUS MP3® Large Series Specifications:
DIMENSIONS
APPROX DIMS 78" HIGH x 50" WIDE x 80" F-B
PRODUCT CHAMBER
316 L PRODUCT CHAMBER
DRAIN W/SHUT OFF VALVE
VALIDATION PORT
NON-STOPPERING or STOPPERING
2" ACRYLIC DOOR
SHELVES
UP TO 10 24" x 36" PRODUCT SHELVES 60 SQ FT USABLE SHELF AREA
TEMPERATURE RANGE -50 TO 50C
(1) RADIANT SHELF
SPACING 2.25" BETWEEN SHELVES
NON TOXIC HEAT TRANSFER FLUID
PROBES
T COUPLE JACK PANEL WITH ONE PRODUCT PROBE PER SHELF (more as needed).
ALSO PROBE SHELF IN & OUT AND 2 ICE CONDENSER PROBES
REFRIGERATION SYSTEM
(1) 8 HP 2 STAGE BITZER
WATER COOLED
MAX COND LOW -65C (-80C as needed)
SHELF TEMP -50 to 50C
CFC FREE REFRIGERANTS
DRIP TRAY
COMPRESSOR
BITZER
SEMI HERMETIC, FIELD SERVICEABLE
VACUMM / VALVES
VACUUM PUMP 35 CFM
ANTI SUCKL BACK VALVE
TWO STAGE
CORROSION RESISTANT
OIL MIST ELIMINATOR
PIRANI VACUUM GAUGE
CAPACITANCE MANOMETER
PRESSURE BACK-FILL
ELECTRIC VBS VALVE
CONDENSER
316 L ICE CONDENSER 50L/24 HRS
INTERNAL COIL
HOT GAS DEFROST
DOOR / GASKET / CLAMPS
2" ACRYLIC DOOR
IMPROVED SILICONE GASKET
STAINLESS STEEL TOGGLE CLAMPS AS HOLD DOWNS
ELECTRONICS
EATON CONTACTS AND CIRCUIT BREAKERS
POWER 208-230 3 PHASE
COMPUTERIZATION
ADVANCED PC/PLC CONTROL SYSTEM
LAPTOP OR DESKTOP AVAILABLE
FULLY CONFIGURABLE
UNLIMITED RECIPES
MANUAL OR AUTO OPERATION
AUTOMATIC LEAK RATE TESTING
PROGRAMMING
REMOTE ACCESS
WINDOWS BASED PC
BATCHED REPORTS
10 FREEZING STEPS
16 DRYING STEPS
AUTOMATIC DEFROST
FOOTING
CASTORS
KEY FEATURES SUMMARY
SEMI HERMETIC COMPRESSOR, FIELD SERVICEABLE
FULL SCREEN GRAPHICS - SHOWS PHASES OF OPERATION
UNLIMITED PROGRAM AND DATA STORAGE
TRAYS ARE INCLUDED
VACUUM CONTROL VALVE INCLUDED
316L STAINLESS STEEL ON ALL WETTED PARTS
