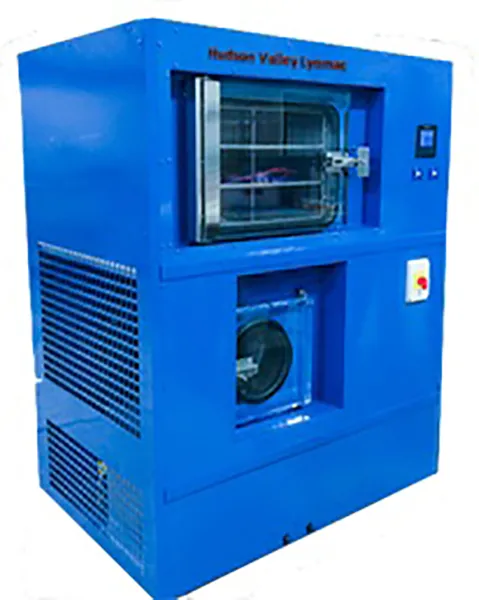

Trilogy Series Freeze Dryer
Trilogy Series Freeze Dryer
The TRILOGY® Lab Series comes in both shelf level temperature control and chamber drum configurations. It is available as a dual bulk tray and manifold system with multiple manifold ports.
It is a fully configurable laboratory free-standing system with castors, available with or without stoppering with up to six 10" x 14" or larger, 15" x 20" shelves. Standard shelf spacing is 2.25 inches. The Trilogy® lab series can be customized for greater shelf spacing.
TRILOGY® Lab Series Specifications:
DIMENSIONS
77" H 30" F-B x 36" W
PRODUCT CHAMBER
316 L PRODUCT CHAMBER
DRAIN W/SHUT OFF VALVE
VALIDATION PORT
NON-STOPPERING or STOPPERING
CUBE or DRUM
CHAMBER DOOR 1.5" CLEAR ACRYLIC
SHELVES
UP TO 6 PLUS RADIANT
10" x 14" or 15" x 20" Shelves
SHELF TEMP RANGE -55 TO 50C (one compressor)
SHELF TEMP RANGE -75 TO 50C (two compressors)
SHELF 316 L SS
SPACING 2.25" BETWEEN SHELVES
NON TOXIC HEAT TRANSFER FLUID
PROBES
T COUPLE JACK PANEL WITH ONE PRODUCT PROBE PER SHELF (more as needed).
ALSO PROBE SHELF IN & OUT AND 2 ICE CONDENSER PROBES
REFRIGERATION SYSTEM
ONE COMPRESSOR
AIR COOLED
CFC FREE REFRIGERANTS
DRIP TRAY INCLUDED
COMPRESSOR
3/4 HP HERMETIC for -55
ADDITIONAL 1 HP for -85
VACUUM / VALVES
COLD TRAP
EXTERNAL VACUUM PUMP
VACUUM PUMP 8 CFM
LEYBOLD OR BETTER
ANTI SUCK BACK VALVE
TWO STAGE
CORROSION RESISTANT
OIL MIST ELIMINATOR
PIRA VACUUM GAUGE
PRESSURE BACK-FILL
CONDENSER
TOTAL ICE CAPACITY 20 LITERS
MAX COND LOW -55C / -85C
15L/24 HRS
ICE CONDENSER 316 L SS
INTERNAL COIL
HOT GAS DEFROST
ELECTRONICS
SINGLE PHASE
208-230 50/60 HERTZ
NEMA 6-15R
COMPUTERIZATION
ADVANCED PLC CONTROL SYSTEM
RECORD CYCLE
FULLY CONFIGURABLE
UNLIMITED RECIPES
MANUAL OR AUTO OPERATION
PROGRAMMING
10 FREEZING STEPS
16 DRYING STEPS
AUTOMATIC DEFROST
FOOTING
BENCH-TOP DESIGN
KEY FEATURES SUMMARY
HERMETIC COMPRESSOR
MONITOR ALL CRITICAL CONTROL POINTS
UNLIMITED PROGRAM AND DATA STORAGE
TRAYS ARE INCLUDED 31MM HIGH
VACUUM CONTROL VALVE INCLUDED
316L STAINLESS STEEL ON ALL WETTED PARTS
OPTIONAL
CAPACITANCE MANOMETER
LAPTOP ONLINE INTEGRATION
MONITORING & TREND REPORTING
