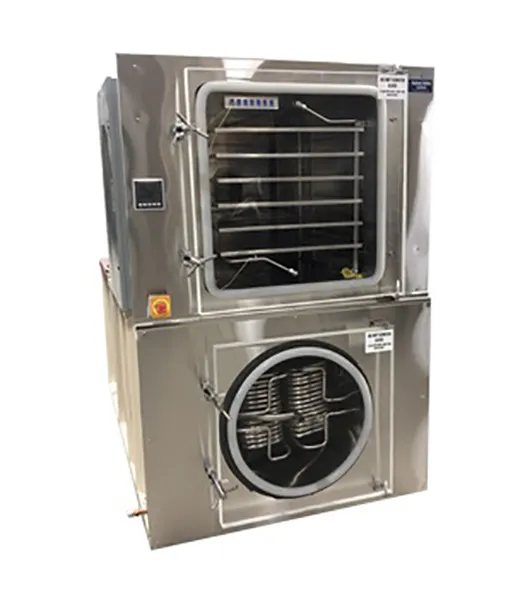

TRIDENT Mid-Sized freeze dryer
TRIDENT Mid-Sized freeze dryer
The TRIDENT® Mid-Sized freeze dryer comes in both shelf level temperature control and chamber drum configurations.
It is a fully configurable pilot / small production system, available with or without stoppering with up to five 24" x 36" shelves.
The system is optionally equipped with manifold ports.
Trident® Mid-Sized Specifications:
DIMENSIONS
APPROX DIMS 88" HIGH x 50" WIDE x 84" F-B
PRODUCT CHAMBER
316 L PRODUCT CHAMBER
DRAIN W/SHUT OFF VALVE
VALIDATION PORT
NON-STOPPERING or STOPPERING
2" ACRYLIC DOOR
SHELVES
UP TO 5 24" x 36" PRODUCT SHELVES 30 SQ FT USABLE SHELF AREA
TEMPERATURE RANGE -50 TO 50C
(1) RADIANT SHELF
SPACING 2" BETWEEN SHELVES
NON TOXIC HEAT TRANSFER FLUID
PROBES
T COUPLE JACK PANEL WITH ONE PRODUCT PROBE PER SHELF (more as needed).
ALSO PROBE SHELF IN & OUT
2 ICE CONDENSER PROBES
REFRIGERATION SYSTEM
5 HP 2 STAGE BITZER
AIR COOLED
MAX COND LOW -65C (-80C as needed)
SHELF TEMP -50 to 50C
CFC FREE REFRIGERANTS
DRIP TRAY INCLUDED
COMPRESSOR
BITZER (GERMAN TECHNOLOGY)
SEMI HERMETIC, FIELD SERVICEABLE
VACUMM / VALVES
VACUUM PUMP 375 LPM
ANTI SUCK BACK VALVE
TWO STAGE
CORROSION RESISTANT
OIL MIST ELIMINATOR
PIRANI VACUUM GAUGE
PRESSURE BACK-FILL
ELECTRIC VBS VALVE
CONDENSER
316 L ICE CONDENSER 30L
MAX LOW TEMP: -65C (-85C AS NEEDED)
INTERNAL COIL
HOT GAS DEFROST
DOOR / GASKET / CLAMPS
2" ACRYLIC DOOR
IMPROVED SILICONE GASKET
STAINLESS STEEL TOGGLE CLAMPS AS HOLD DOWNS
ELECTRONICS
EATON CONTACTS AND CIRCUIT BREAKERS
POWER 208-230 3 PHASE
COMPUTERIZATION
ADVANCED PLC CONTROL SYSTEM
FULLY CONFIGURABLE
UNLIMITED RECIPES
MANUAL OR AUTO OPERATION
AUTOMATIC LEAK RATE TESTING
PROGRAMMING
REMOTE ACCESS
WINDOWS BASED PC
BATCHED REPORTS
10 FREEZING STEPS
16 DRYING STEPS
AUTOMATIC DEFROST
FOOTING
CASTOR MOUNTED
KEY FEATURES SUMMARY
SEMI HERMETIC COMPRESSOR, FIELD SERVICEABLE
PRODUCTION STYLE CONTROL
TRAYS ARE INCLUDED
316l STAINLESS STEEL ON ALL WETTED PARTS
