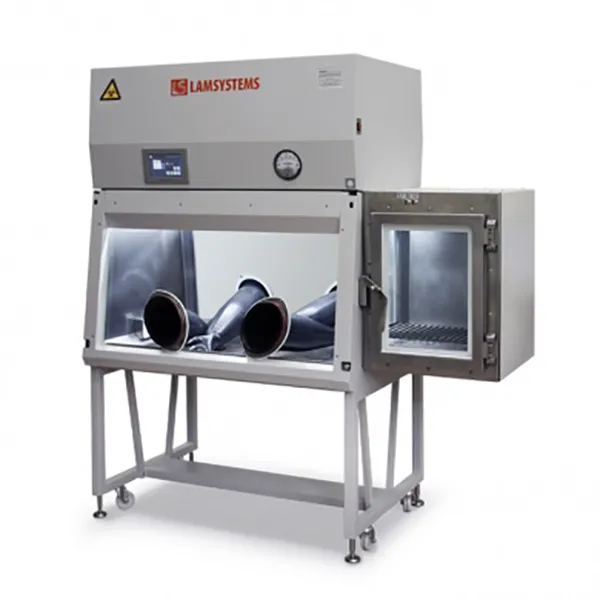

BMB-III-Laminar-S-1,2 PROTECT VIS-À-VIS Class III

BMB-III-Laminar-S-1,2 PROTECT VIS-À-VIS Class III

BMB-III-Laminar-S-1,2 PROTECT VIS-À-VIS Class III

The cabinet is designed for operators working simultaneously opposite one another.

The system of monitoring with the audio-visible indication system warns operator about the failure of working modes in the cabinet.

Application of the Biological Safety Cabinet Class III:

  • Reduction of risk of infection of an operator working with airborne pathogenic agents and microorganisms, protection of the environment as well as the product from external contamination and cross-contamination
  • Protection of an operator and environment from airborne infection when working with pathogenic biological agents (PBA) and microorganisms including highly (especially) hazardous pathogenic groups.
  • Protection of the work agents inside the work chamber from external contamination.

Microbiological safety cabinet BMB-III-Laminar-S”-1,2 PROTECT VIS-À-VIS Class III

Main Parameters and Dimensions

Article

1R-C.002-12

Maximum dimensions of the cabinet with pass box* /WхDхH/ (dimensions without stand are in parenthesis),mm

1720х880х1940(1270)

Dimensions of the work chamber /WхDхH/, мм

1040х655х685

Maximum net weight of the cabinet with stand,kg

350

Maximum input power without built-in electric sockets, W

450

Maximum input power,W

1450

Main Characteristics

Installation work chamber air cleanliness class for suspended particle (aerosol) concentration as per ISO 14644-1

- for particles of 0.5µm and more

ISO 5

- for particles of 5.0µm and more

ISO M (20; ≥5µm); LSAPC

Class of the cabinet as per EN 12469, NSF/ANSI 49

III

Minimum negative pressure in the work chamber,Pa

200

Constantly maintained (operating) negative pressure in the work chamber,Pa

250

Supply air filtration

Two-stage (G4, Н14)

Exhaust air filtration

Two-stage (Н14, H14)

Minimum illumination of the work zone (integral value determined along the whole area of the work zone),lx

2000

Recirculation, %

no recirculation

Maximum noise level at 1 m distance from the cabinet, dB

58*

* Уровень з** level of noise measured as per DIN EN ISO 11201 in free sound field over the sound-reflecting surface (noise level in real operating environment depends on the dimensions of the operating site as well as on the total background noise and may vary by 3-4 dB(A)). Uncertainty coefficient: k = 2 dB
