FUME HOOD with UV unit

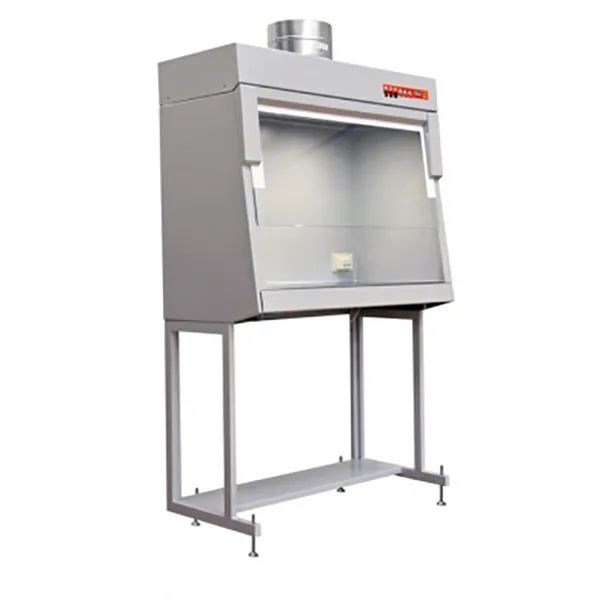

FUME HOOD SHV-1,0-“Laminar-S.” with UV unit

SHV-1,0-“Laminar-S.” is designed for use in laboratories providing operator’s protection when working with chemically harmful materials and for their effective removal from the operating area.

FUME HOOD SHV-1,0-“Laminar-S.” with UV unit

Article	1Е-E.002-10.0
Dimensions of the assembled cabinet with stand, mm (WхDхH)	1020х621х1920
Dimensions of the work chamber, mm (WхDхH)	1020х621х1120
Mass of assembled cabinet with the stand, kg, not more than	84
Input power of the cabinet, W, not more than (exclusively of the load on the built-in outlets)	90
Input power of the fan, W, not more than	31
Maximum load allowed on the sockets, W	1000
Luminance level in the work zone, lux, not less than	1000*
Airflow outflow volume, m3/hr, not less than	400
Noise level at the 1 m distance from the cabinet, dB, not more than	55
