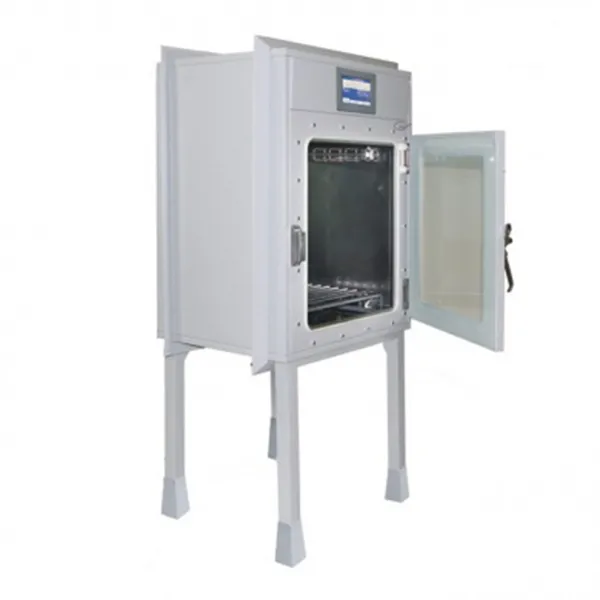

Passive pass Box
PASS BOX (SLUICE) MAKES IT POSSIBLE FOR PASSING THE ITEMS AND MATERIALS:
Between the rooms with different levels of cleanliness,for example between the room with low cleanliness class to the room with high cleanliness class*
*In accordance with air cleanliness classification ISO 14644-1-99.
Between the zones of different biological safety (from hazardous to clean and vice versa) excluding emissions of pathological biological agents and microorganisms (with air or transferred materials).
Pass box can be integrated in the partition-wall of any material.
When installed in a bearing wall (brick, concrete, etc.) without frame stand, maximum width of the wall is limited to 500 mm.
When installed in light or thin walls (drywall, metal, etc.),maximum width of the wall is limited to 380 mm. Frame stand remains in this case providing stability of the pass box during the exploitation period.
Location where pass box is installed must be supplied with a power source.
CONVENIENCE AT EXPLOITATION of of the Pass Box:
“Call-out” function calls for an operator from the opposite side using the sound signal, which is important when the pass box is installed between the rooms isolated from each other.
UV unit's operating parameters can be set independently for each side of the pass box allowing the materials to be disinfected different amounts of time when transferred from the hazardous zone to the clean one and vice versa.
“Cleaning” mode is designed for sanitary disinfection of the work chamber of the pass-box without enabling of the audible and visible alarm.
Adjustable UV unit parameters:
– time interval of the UV-irradiation
– automatic enabling of the UV unit when materials are transferred
AUDIBLE-VISIBLE ALARM automatically warns the user:
– when the UV-irradiation cycle is completed and the materials and items may be removed (at the receiving side)
– when the person is called from the other side
