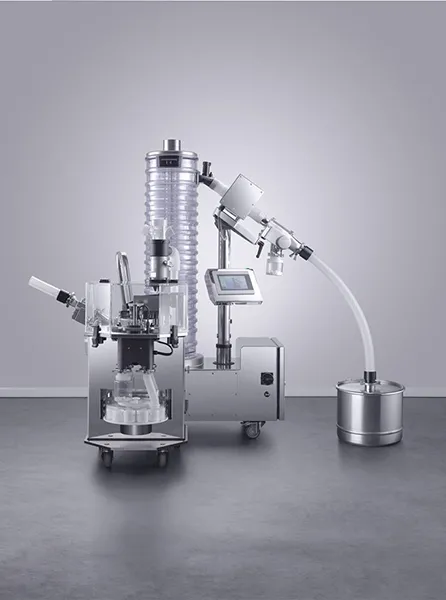

Dust Tight – PFC iSeries tablet deduster with polymer segments
“DT” Dust Tight – PFC iSeries tablet deduster with polymer segments
The “DT” Dust Tight model reduces the operator exposure to product and dust contamination in the production room. Dust Tight systems are modularly upgradable to “C” Containment and “HC” High Containment washable solutions.
Key benefits
Our unique patented metal check system Flex Connect guarantees a completely closed Dust Tight transfer from deduster to drum with no tri-clamp solution.
The unit is generally equipped with a metal particles detector. Three different detectors are available per customer’s choice: Lock, Ceia, Safeline. As metal particles detectors are sensitive to vibrations, the vibrating parts of the deduster are isolated from the steady parts by our Flex Connect components. This allows to reach optimal accuracy such as a spherical 316L stainless steel part of 0,4 mm in the products. A smart system allows us to introduce test samples inside the metal check head without contact between operator and product.
Metal check parameters are monitored through an integration of an original software of metal check supplier inside the central machine HMI.
There are 5 different conveying dedusting heights available, from 500 mm to 1500mm.
Thanks to sophisticated engineering, this Dust Tight unit can be easily transformed into a “C” Containment or “HC” High Containment with washable execution.
Frame pre-equipped for:
