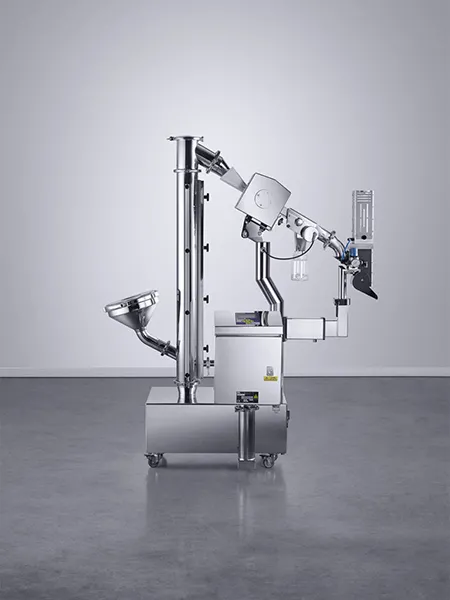

PTGV capsule polisher with metal check
The PTGV model is our entry point in the range of capsules deduster/polisher with metal check. The system does not have any containment features and is only available in 3 heights. It can be equipped with a metal detector, an empty capsule eliminator and an automatic drum loading system.
Key benefits
The metal detector ensures optimal accuracy such as spherical 316L stainless steel part of 0,4 mm in the products. A high speed rejection mechanism instantly rejects non-compliant products. Three different detectors are available: Lock, Ceia, Safeline. The construction of this special frame allows to save space in the production room and reduces the retention areas. In addition, the circuit of capsules is totally closed between the inlet into the deduster and the outlet of the metal particle detector. The ECE feature, short for Empty Capsules Eliminator, guarantees 100% production without empty capsules. An optional drum loading system allows the drums to fill automatically. This may significantly reduce labor charge and cross contamination risk in the production room.
Technical Data
Products to process
Capsules
Dedusting technology
Helicoidal brush system with side vacuuming
Dedusting effect
High performance level
Vacuum
Elevation tube section
Total emptying
Depend of product size and weight
Conveyor material
FDA Hi-tec polymer
Capacity/Speed
Small capsules Size 4-5
Up to 400.000 caps/h
Medium capsules Size 1-2-3
Up to 250.000 caps/h
Large capsules Size 0-00
Up to 200.000 caps/h
Interfacing/Connectivity
No HMI
Inlet Height
540 mm (center of inlet tube DN50)
Available elevation heights
800/1000/1200/1800 mm
Accessories
Pressure monitoring
Standard
Pressure decade
N/A
Metal check
CEIA PH21 E (square 100 x 40 mm open)
Intrinsic sensitivity
SS 316L 0,50 mm
Ferro 0,30 mm
Non Ferro 0,35 mm
LOCK Insight
Autocheck for metal detector
Empty Capsule Eliminator
Optional ECE
Diverter
2 ways, 4 ways
Regulations
Occupational Exposure Band
Noise level
<72 dB(A)
GMP compliance
Yes
CE compliance
Material certificate
Available
IQ-OQ protocole
Cleaning and Dismantling
Manual cleaning
Easy access for cleaning/No tools required
Automatic cleaning
Floor dimension
755 mm x 480 mm
Frame parts
Stainless steel 304 - brushed
Frame mounted on wheels
