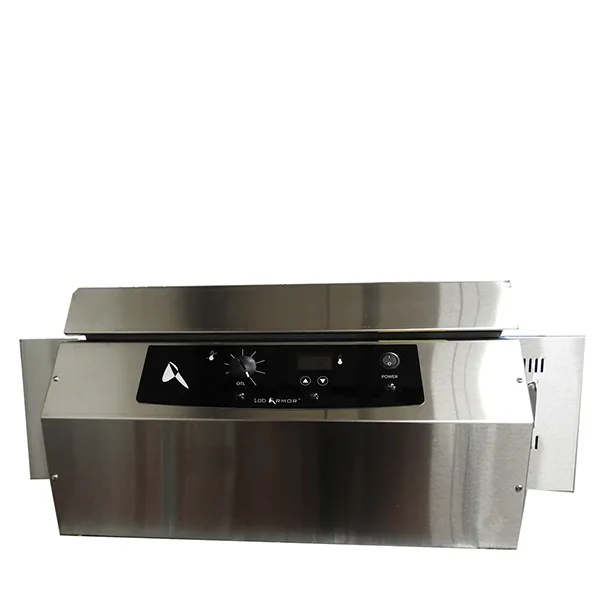

14 L PELTIER BEAD BATH

14 L PELTIER BEAD BATH

Introducing the Lab Armor Peltier Baths! Using TEC-H thermoelectric technology and Lab Armor beads, you can heat or cool your samples and media, saving bench space while processing materials with exceptional temperature uniformity.

Like all Lab Armor beads and bath systems, the new TEC-H bath can eliminate potential contamination found in traditional water baths, with almost maintenance-free operation.

Features:

Two Removable 7L Aluminum Baskets
Temperature Range of 2°C-70°C
Sealing Lid
Acrylic Viewport
Peltier TEC-H Device
Capable of using NEMA 5-15P or EU1-16 Plug
Available in 7L and 14L Configurations
Tested by Intertek to International Electrotechnical Commission 61010 safety standards

Spec sheet for the 14 Liter Bath

SPECS

MODEL

14 L Peltier Bead Bath

PART ID

75400-714

EXTERIOR DIMENSIONS (W × D × H)

30.4 × 24.2 × 12.2
(772 mm × 615 mm × 310 mm)

INTERIOR DIMENSIONS (W × D × H)

12.5 × 6.1 × 6.0
(318 mm × 154 mm × 152 mm)

VOLUME

.52 cu.ft. (14.8 L)
