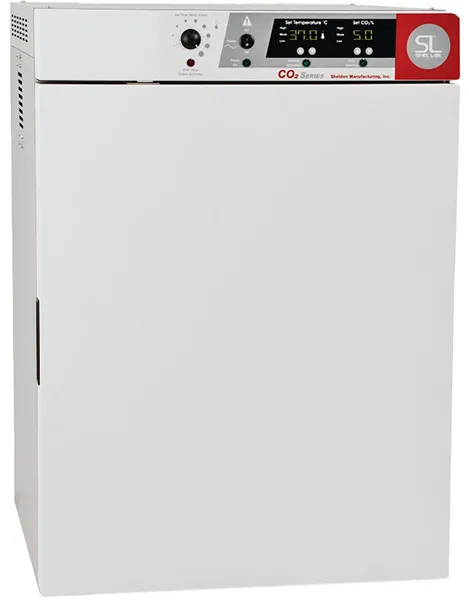

Model SCO5A Incubator
Model SCO5A Incubator
Model SCO5A is ideal for sensitive tissue and cell culture applications. It provides the benefits of contamination control and uncompromising temperature uniformity for even the most demanding incubations.
Standard Design Features:
- Infrared (IR) CO2_Sensor is extremely quick to recover CO2 levels after door openings and ensures superior pH stability
- Unique air jacket design provides excellent temperature uniformity of +/-0.25°C at 37°C
- Humidity levels maintained through evaporation of up to 95%
- Data logging capabilities
- Designed to minimize contamination; includes:
- Patented copper-caged HEPA filter
- Heated door to ensure superior temperature uniformity and also reduce the potential forcondensationto form on the inner glass door
- Durable stainless steel chamber for easy cleaning
- Exclusive heated copper CO2 inlet to prevent moisture from being introduced into the chamber
- Copper shelving option
- Autoclavable shelving system
- Industry best warranty – 5 years parts and labor in the USA, 7 years on the IR sensor
SPECS
MODEL
SCO5A
PART ID
SCO5A
EXTERIOR DIMENSIONS (W × D × H)
27.5 × 28.5 × 37.8
(699 mm × 724 mm × 960 mm)
INTERIOR DIMENSIONS (W × D × H)
20.5 × 19.8 × 21.5
(521 mm × 503 mm × 546 mm)
VOLUME
5.0 cu.ft. (142 L)
SHELF DIMENSIONS (W × D)
19.1 × 17.8 (485 mm × 251 mm)
UNIT WEIGHT
200 lbs (91 kg)
INTERIOR METAL
300 SST
EXTERIOR METAL
Painted Cold Roll Steel
OPERATING TEMPERATURE RANGE
Amb +5C - 60C
TEMPERATURE UNIFORMITY - MIDRANGE
0.25 °C
TEMPERATURE STABILITY - MIDRANGE
0.1 °C
CONTROLLER TYPE
Digital
DISPLAY RESOLUTION
0.1 °C
POWER VOLTAGE , FREQUENCY AND CURRENT
110-120 VAC, 50/60 Hz, 6.0 Amps
SAFETY CERTIFICATIONS
UL 61010-1, EN 61010-1, CSA 61010-1, CE
