Model SCO2W Incubator
Model SCO2W Incubator

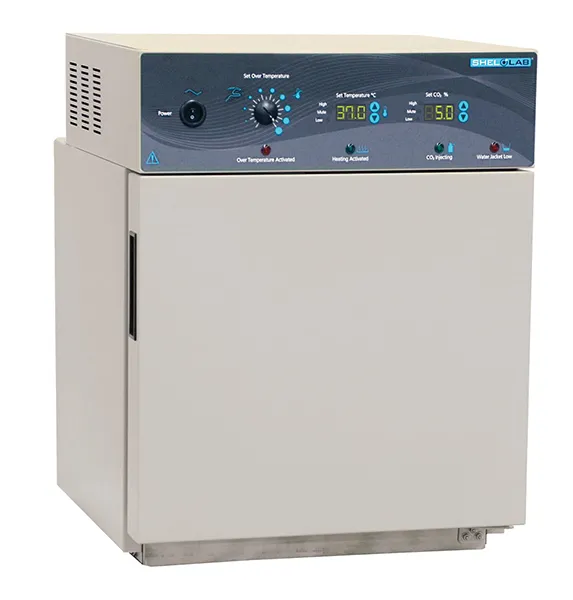

Model SCO2W water jacketed CO2 incubator and is an ideal benchtop unit for cell culture applications. It provides a precisely controlled, accurate, pure environment throughout the culturing process. Shel Lab CO2 incubators are designed to provide the uniform temperatures and highly stable CO2 environments that are necessary to prevent shocks to cells. Need more space? This unit is also available in 5 cu.ft /143 L (Model SCO5W).
Standard Design Features:
- Infrared (IR) CO2_Sensor is extremely quick to recover CO2 levels after door openings and ensures superior pH stability
- Unique water jacket design provides excellent temperature uniformity of +/-0.2°C at 37°C
- Humidity levels maintained through evaporation of up to 95%
- Data logging capabilities
- Designed to minimize contamination; includes:
- Patented copper-caged HEPA filter
- Heated door to ensure superior temperature uniformity and also reduce the potential for condensation to form on the inner glass door
- Durable stainless steel chamber with coved corners for easy cleaning
- Exclusive heated copper CO2 inlet not only promotes temperature uniformity but also prevents moisture from being introduced into the chamber
- Copper shelving option
- Autoclavable shelving system
- Industry best warranty – 5 years parts and labor in the USA, 7 years on the IR sensor
SPECS
MODEL
SCO2W
PART ID
SCO2W
EXTERIOR DIMENSIONS (W × D × H)
21 × 22.5 × 27
(534 mm × 572 mm × 686 mm)
INTERIOR DIMENSIONS (W × D × H)
15.7 × 15.7 × 10.2
(400 mm × 400 mm × 260 mm)
VOLUME
1.5 cu.ft. (42 L)
SHELF DIMENSIONS (W × D)
13.9 × 14 (353 mm × 356 mm)
UNIT WEIGHT
136 lbs (61.7 kg)
INTERIOR METAL
300 SST
EXTERIOR METAL
Painted Cold Roll Steel
OPERATING TEMPERATURE RANGE
Amb +5C - 60C
TEMPERATURE UNIFORMITY - MIDRANGE
0.2 °C
TEMPERATURE STABILITY - MIDRANGE
0.1 °C
CONTROLLER TYPE
Digital
DISPLAY RESOLUTION
0.1 °C
POWER VOLTAGE , FREQUENCY AND CURRENT
110-120 VAC, 50/60 Hz, 5.0 Amps
SAFETY CERTIFICATIONS
UL 61010-1, EN 61010-1, CSA 61010-1, CE
