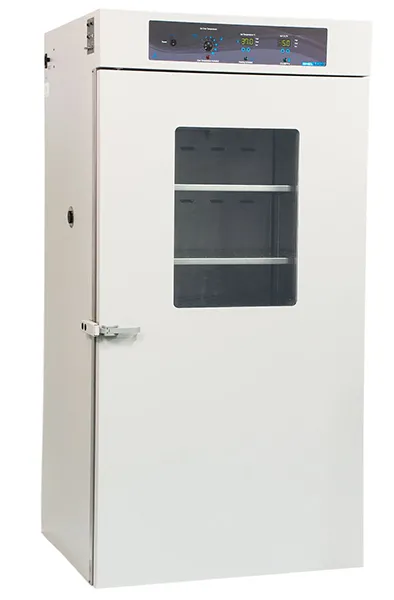

Model SCO31 Incubator

Model SCO31 Incubator

Model SCO31 Incubator

Model SCO31 large capacity dry CO2 incubator is ideal for roller bottle apparatus and high-volume tissue culture applications and cell harvesting. It provides a precisely controlled, accurate, pure environment throughout the culturing process. Also available in a 40 cu.ft./1125 L size (Model SCO40) and 58 cu.ft./1641 L size (Model SCO58). Includes a two-year limited warranty.

Standard Design Features:

  • Infrared (IR) CO2_Sensor is extremely quick to recover CO2 levels after door openings and is not affected by temperature or humidity levels
  • Unique air jacket design provides excellent temperature uniformity of +/-0.5°C at 37°C
  • Ideal for roller bottle apparatus includes a flip-out ramp
  • Corrosion resistant, easily cleanable stainless steel chamber
  • Viewing window in door
  • 1 interior electrical outlet

SPECS

MODEL

SCO31

PART ID

SCO31

EXTERIOR DIMENSIONS (W × D × H)

39.6 × 33.7 × 76.2
(1005 mm × 856 mm × 1936 mm)

INTERIOR DIMENSIONS (W × D × H)

32.9 × 26.1 × 63.3
(836 mm × 663 mm × 1608 mm)

VOLUME

31.4 cu.ft. (890.7 L)

SHELF DIMENSIONS (W × D)

32.4 × 25.0 (823 mm × 638 mm)

UNIT WEIGHT

500 lbs (226.8 kg)

INTERIOR METAL

300 SST

EXTERIOR METAL

Painted Cold Roll Steel

OPERATING TEMPERATURE RANGE

Amb +8C - 60C

TEMPERATURE UNIFORMITY - MIDRANGE

0.5 °C

TEMPERATURE STABILITY - MIDRANGE

0.1 °C

CONTROLLER TYPE

Digital

DISPLAY RESOLUTION

0.1 °C

POWER VOLTAGE , FREQUENCY AND CURRENT

110-120 VAC, 50/60 Hz, 14.5 Amps

SAFETY CERTIFICATIONS

UL 61010-1, EN 61010-1, CSA 61010-1, CE
