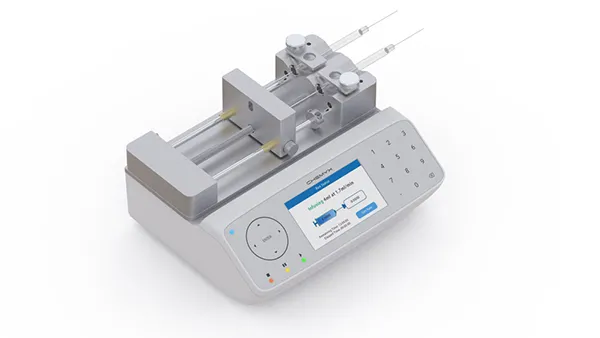

Fusion 100-X syringe pump
The Fusion 100-X syringe pump is a programmable modular dual-channel precision infusion syringe pump. This syringe pump has the following features: two syringes to infuse simultaneously, a full-glass chemical resistant touch screen, a programmable multi-step mode, computer control with Lab view and other programs, an add-on 11-Syringe push rack to increase the syringe used to eleven. Fusion 100-X can be used for dispensing/dilution, organ/tissue perfusion, and fluid circulation in chemical, pharmaceutical, and biotech R&D.
Technical Specifications
Mode
Infuse Only
Accuracy
±
Reproducibility
Syringe Size (Min/Max)
0.5µL to 60mL
Syringe Type
Plastic, Glass and Stainless Steel Syringe Type Chart
Syringe Flow Rates
See Syringe Library for Min & Max Flow Rates
Minimum Flow Rate
0.0001 µL/min (with 0.5µL syringe)
Maximum Flow Rate
85 mL/min (with 60mL syringe)
Linear Force
55lb (25kg)
Display
4.3 inch LCD Glass Touch Screen
Connectivity
USB-B, RS232 and TTL Ports
System Dimensions
9.5 x 8.0 x 4.9 inches (24 x 20 x 12 cm)
Power
110/220 VAC, 30W auto switching
Weight
7lbs (3kg)
Motor Drive
1.8˚ MicroStepper Motor
Step Resolution
0.0528 µm/step
Operating Temperature
4°C to 40°C (40°F to 104°F)
Multi Steps
Program up to 99 step with looping steps
Parameter Setting
Runs based on time or rate
Modular Capability
Option to add a 11 syringe rack
Regulatory Compliance
CE, RoHS, REACH, ETL
