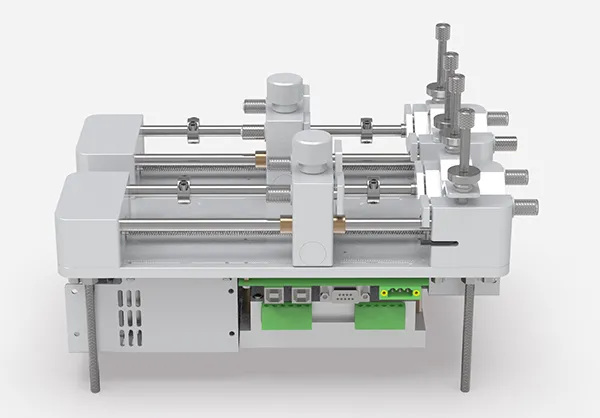

Fusion 4000-X OEM Module
Fusion 4000-X OEM is a bolt-on microfluidic syringe pump module designed for integration into customer-made analytical instruments requiring precision flow functionality with removable syringes. With the same specifications of Fusion 4000-X syringe pump, the Fusion 4000-X OEM module is configured with dual motors and two independently controlled precision syringe pump channels that allow independent dual-rate, push-pull, pulseless, reproducible flow rates, and oscillatory flow requirements for difficult research applications such as lipid nanoparticles, microfluidic mixing, and microfluidic flow control in drug formulation applications. The capability of adding two dual-syringe racks allows the Fusion 4000-X OEM to hold four syringes. Like other OEM systems, the Fusion 4000-X OEM module can be controlled by a computer via Teraterm or a customer-created computer program.
Technical Specifications
Mode
Infuse & Withdraw
Accuracy
±
Reproducibility
Syringe Size (Min/Max)
0.5µL to 100mL
Syringe Flow Rates
See Syringe Library for Min & Max Flow Rates
Minimum Flow Rate
0.0001 µL/min (with 0.5µL syringe)
Maximum Flow Rate
170.5 mL/min (with 100mL syringe)
Linear Force
90Lb (40.82kg)
Display
None
Connectivity
USB-B, RS232 and TTL Ports
System Dimensions
11.3 x 7.1 x 7.5 inches (28.7 x 18 x 9 cm)
Power
24V DC 4.6A
Weight
15lbs (7kg)
Motor Drive
1.8˚ MicroStepper Motor
Step Resolution
0.0293 µm/step
Operating Temperature
4°C to 40°C (40°F to 104°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Humidity
20% to 80% RH, non-condensing
Installation Category
II
Regulatory Compliance
CE, RoHS, REACH, FCC
Syringe Type
Plastic and Glass
