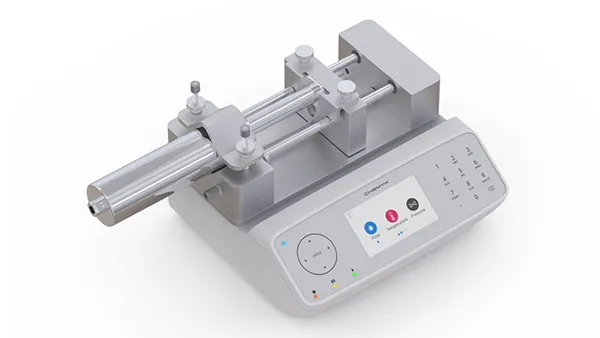

Fusion 6000-X high-pressure syringe pump
The Fusion 6000-X high-pressure syringe pump is designed for dosing viscous solutions and semi-solid material against pressure with microfluidic pump precision. The Fusion 6000-X pump has the following unique features: 700 lb linear pushing force, add-on syringe heater, add-on pressure sensor, modular 4 syringe rack and priming function. These features allow Fusion 6000-X to work against high back pressure while warming the syringe contents with pressure monitoring and control. This system also supports a expansion rack to increase syringe capacity to four. With an all-glass touch screen interface and heavy-duty mechanical structure, Fusion 6000-X syringe pumps are chemical resistant, easy to clean, and have high durability for industrial lab environments.
Technical Specifications
Mode
Infuse/Withdraw
Accuracy
±
Reproducibility
Syringe Size (Min/Max)
0.5µL to 300mL Stainless Steel Syringe
Syringe Type
Plastic, Glass and Stainless Steel Syringe Type Chart
Syringe Heating Sleeve Temperature
up to 80°C
Syringe Flow Rates
See Syringe Library for Min & Max Flow Rates
Minimum Flow Rate
.0001 µL/min (with 0.5µL syringe)
Maximum Flow Rate
408 mL/min (with 300mL syringe)
Linear Force
up to 700lbs (318kg)
Maximum Pressure
See Max Pressure for Chemyx Syringes
Maximum Viscosity
250,000 cP
Display
4.3 inch LCD Touch Screen
Connectivity
USB-B, RS232 and TTL Ports
System Dimensions
11 x 10 x 6.9 inches (28 x 26 x 14 cm)
Power
110/220 VAC
Weight
19lbs (8.61kg)
Motor Drive
1.8˚ MicroStepper Motor
Step Resolution
0.0938 µm/step
Operating Temperature
4°C to 40°C (40°F to 104°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Humidity
20% to 80% RH, non-condensing
Installation Category
II
Regulatory Compliance
CE, RoHS, REACH, ETL
