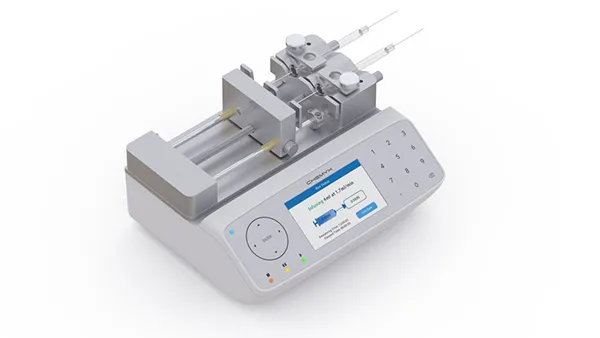

Fusion200-X Dual Syringe Pump
The Fusion 200-X is a programmable, dual-channel infusion and withdrawal modular syringe pump. This advanced precision syringe pump features two syringes to infuse/withdraw simultaneously at pulseless, reproducible rates; a programmable multi-step mode that allows users to program complex multi-step flow rates; computer control with Lab view and other programs; an add-on 4-syringe push and pull rack for four large syringes; an add-on 11-syringe push and pull rack to increase the syringe number up to eleven. Fusion 200-X the full-glass touch screen is chemical resistant and easy to clean for lab environments of all types. This syringe pump is designed for precision dispensing/dilution, organ/tissue perfusion, and microfluidics, electrospinning, aerosols, pharmaceutical, and bioscience research.
Technical Specifications
Mode
Infuse/Withdraw
Accuracy
±
Reproducibility
Syringe Size (Min/Max)
0.5µL to 60mL
Syringe Type
Plastic, Glass and Stainless Steel Syringe Type Chart
Syringe Flow Rates
See
Minimum Flow Rate
0.0001 µL/min (with 0.5µL syringe)
Maximum Flow Rate
85 mL/min(with 50mL syringe)
Linear Force
65lb (29.4kg)
Display
4.3 inch LCD Touch Screen
Connectivity
USB-B, RS232 and TTL Ports
System Dimensions
9.5 x 8.2 x 4.9 inches (24 x 20.8 x 12.4 cm)
Power
110/220 VAC automatically switches between 110V to 220V, 30 W
Weight
7lbs (3.1kg)
Motor Drive
1.8˚ MicroStepper Motor
Step Resolution
0.0528 µm/step
Operating Temperature
4°C to 40°C (40°F to 104°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Multi Steps
Program steps up to 99 step / loop steps up to 99 loop
Parameter Setting
Option to choose time or rate
Modular Capability
Option to add a 11 syringe rack
Humidity
20% to 80% RH, non-condensing
Installation Category
II
Regulatory Compliance
CE, RoHS, REACH, ETL
