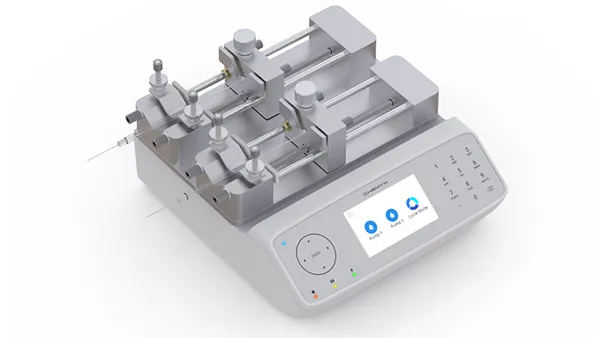

Fusion 4000-X independent dual-channel syringe pump
The Fusion 4000-X independent dual-channel infuse and withdraw syringe pump – built with 2 separate pump drives capable of independent pulseless, reproducible rates and movement. Programmable multi-step and cycle mode that allows users to input complex flow profiles or perform flow cycling from a computer Labview or the pump itself. This system also can be expanded with a 2-syringe push and pull rack attachment to increase the total syringe capacity to four.
Designed for a wide range of biopharmaceutical research like lipid nanoparticles, microfluidic mixing, and lab-on-chip flow control in drug formulation applications; with an all-glass touch screen and precision machined metal design, the Fusion 4000-X dual-channel syringe pump is easy to clean, for lab and GMP environments.
Technical Specifications
Mode
Infuse/Withdraw
Accuracy
±
Reproducibility
Syringe Size (Min/Max)
0.5µL to 100mL
Syringe Type
Plastic, Glass, and Stainless Steel Syringe Type Chart
Syringe Flow Rates
See Syringe Library for Min & Max Flow Rates
Minimum Flow Rate
.0001 µL/min (with 0.5 µL syringe)
Maximum Flow Rate
170.5 mL/min (with 100mL syringe)
Linear Force
85lb (38.5kg)
Maximum Pressure
See Max Pressure
Display
4.3 inch LCD Glass Touch Screen
Connectivity
USB-B, RS232, RS485 and TTL Ports
System Dimensions
11 x 12 x 4.9 inches (28 x 31 x 13 cm)
Power
110/220 VAC
Weight
19 lbs (8.6kg)
Motor Drive
1.8˚ MicroStepper Motor
Step Resolution
0.0293 µm/step
Operating Temperature
4°C to 40°C (40°F to 104°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Humidity
20% to 80% RH, non-condensing
Installation Category
II
Regulatory Compliance
CE, RoHS, REACH, ETL
