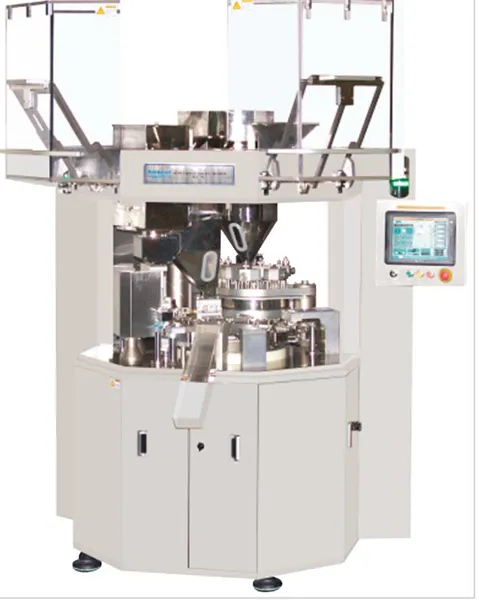

CF-95 automatic capsule filler

The CF-95 automatic capsule filler is applied in Pharma industry for the filling of hard Gelatin capsule. It can be used to fill machine made hard capsules ranging from No. 00, 0, 1, 2, 3 or 4. The filling materials include Powder or Granules.

Features:

• Unique Automatic Line Capsule Filling Process
• A Precise dosing system for better yield
• High degree of safety – eg. Safety interlocks stops machine in case doors are opened.
• Totally enclose operations reduce cross contamination or operator’s exposure to formulation
• Better control over process parameters by usage of latest PLC base control system.
• State-of-the-art Touch Screen Human Machine Interface
• All parts that come in contact with formulation are made of stainless steel. ( AISI SS 316 )
• Easy and fast changeover from size to size or formulation to formulation.
• Automatic shut off on malfunction with visual display to identify the fault.

Working Conditions:

• Environment Temp. : 22 oC to 24 oC
• Relative Humidity : 40% – 50% RH
• Powder Granularity : 40-80 mesh
