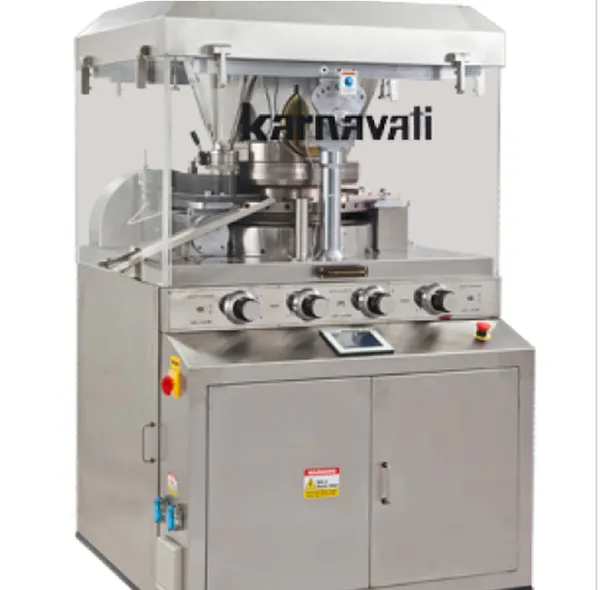

UNIK I FC

Entry-Level Production Scale Double Sided Tablet Press

Our UNIK I FC (Front control) is our most cost-effective, double rotary tablet press capable of churning out maximum 2,59,200 tablets/hour with BB tooling! The robust construction of the machine ensures smooth running even at high speed. The machine is covered with SS guards at bottom and acrylic guards at the top. The precise speed control is possible by AC inverter drive instead of conventional variable speed pulley. The machine is equipped with auto lubrication with timer & metering cartridges. It is equipped with all normal safety precautions to make it an operator friendly machine. UNIK – I FC is available in ‘D’ or ‘B’ or ‘BB’ Tooling with 10 Ton & 6.5 Ton.

Ideally suited for:

• Pharmaceutical, Veterinary, Nutraceuticals, confectionary, detergents
• High volume products

Features:

• Main Motor with ACVF
• Turret made up of S.G. Iron with ELNP
• Safety Interlocking for Upper & Lower Guard.
• Lower Punch Seals
• Auto Lubrication
• Gravity Feeding System
• PLC with MMI Control Panel
• Front Control – Tablet Parameters viz. Tablet Thickness, Depth of Fill etc.
• SS 316 Contact Parts

Optional Features:

• PLC based MMI Control Panel
• Turret with SS 316 Die Table
• Hydrospray Technology
• Force Feeder with ACVF
