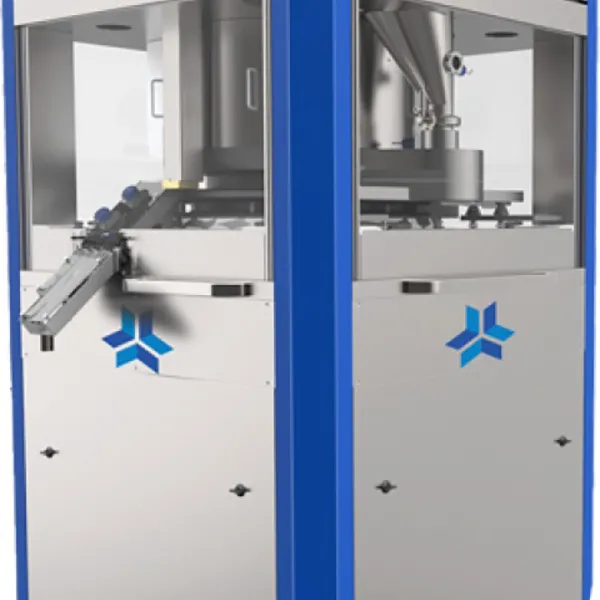

High Speed Single Sided Rotary Tablet Press with Automatic CFC and AWC Systems
The NXi 49 is our High Speed Single Rotary Tablet Press ideal for high quality & medium scale production with built in with fully automatic CFC & AWC system. The new tablet press has an optional EXCHANGEABLE COMPRESSION MODULE (ECM), which allows full change-over in less time. All product contact parts are included in this ISOLATED DUST TIGHT module, which is disconnected and removed in minutes. Another clean isolated module with the right tooling can now be installed and the machine is ready to produce the next batch.
Features
HMI
OPTIONAL FEATURES:
Model
UNIK NXI 49
UNIK NXI 61
UNIK NXI 75
No. of stations
49
61
75
Tooling
D
B
BB
Max. Tablet diameter in mm (round)
25
16
13
Max. Tablet Length in mm (Shape)
19
Max. Tablet Thickness in mm
8.5
Max. Depth of fill
18
Tablets/hr (Max)*
29,400
3,66,000
4,50,000
Turret RPM (max)
10 -100
Max. compression Force
10 ton
6.5 ton
Max. Pre compression Force
4 ton
Upper punch penetration
1 – 8 mm
Pitch circle diameter
660 mm
Electrical Motor
10 HP , 480 V AC, 3 Phase , 60 HZ
Force feeder motor
0.5 H.P. 220 V A.C., 75 RPM, 50 HZ, 1 PH
Machine size in mm
1220 x 1143 x 2190
Net weight in kg.
4500
