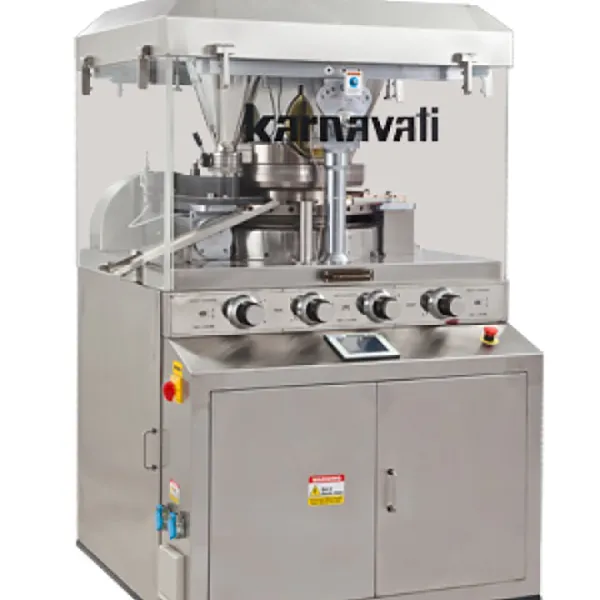

Entry-Level Production Scale Double Sided Tablet Press
Our UNIK I FC (Front control) is our most cost-effective, double rotary tablet press capable of churning out maximum 2,59,200 tablets/hour with BB tooling! The robust construction of the machine ensures smooth running even at high speed. The machine is covered with SS guards at bottom and acrylic guards at the top. The precise speed control is possible by AC inverter drive instead of conventional variable speed pulley. The machine is equipped with auto lubrication with timer & metering cartridges. It is equipped with all normal safety precautions to make it an operator friendly machine. UNIK – I FC is available in ‘D’ or ‘B’ or ‘BB’ Tooling with 10 Ton & 6.5 Ton.
Ideally suited for:
Features:
Optional Features:
Model
UNIK I FC - 27
UNIK I FC - 45
UNIK I FC -35
No. of stations
27
45
35
Tooling
D
BB
B
Tablet diameter (Max.) in mm
23
12
16
Depth o fill (Max.)
20
17
Tablets/hr (Max)*
1,55,520
2,59,200
2,01,600
Turret RPM (max)
48
Max. compression in ton
10
6.5
Upper Punch Penetration
1.5 – 8 mm
Electric motor
10 HP 1440 RPM, 208 V AC, 3 PHASE, 60 HZ
Force feeder motor
0.25 HP, 230 V, 960 RPM, 3 Phase
Machine size in mm
1024 ×1024 × 1800
Net weight in kg.
1600
