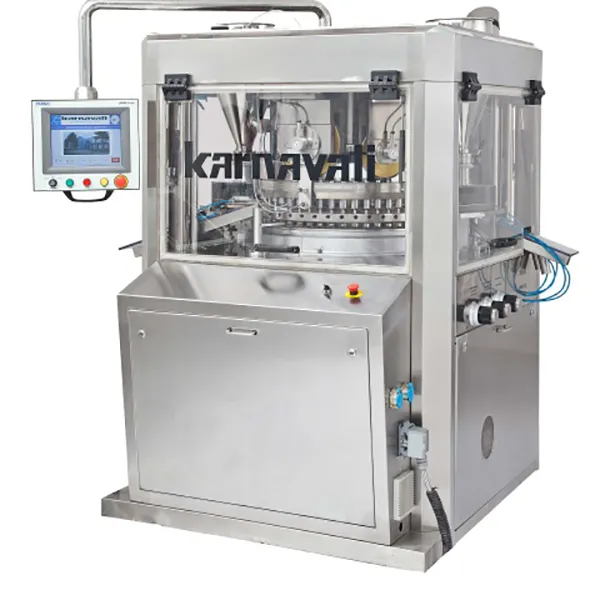

Production Scale Double Sided Rotary Tablet Press with Pre-Compression
The UNIK II EC is a double sided, rotary tablet press with built-in pre-compression. All machine controls are adjustable from the outside of the machine. The Main & pre-compression is having a fixed capacity of 10 Tons. The pressure roller is made of EN 31 and is mounted on the bearings. Pressure rollers have a unique sliding mechanism which makes the machine easily accessible during cleaning and maintenance. The pressure loading is designed in such a manner to achieve desired thickness & hardness of the tablet. Overload release is already provided in the machine to safeguard against any overload. The provision has been already incorporated in the machine to use double die life by reversing the dies.
The machine is fitted with force feeders having variable frequency drive and force feeders are designed with three paddles for the optimum performance over the wide range of materials and tabletting speeds. The drive of force feeders and turret is synchronized for better performance. The force feeder is easy to assemble/ disassemble and the material flow to the force feeder is also controlled by lockable butterfly valve. Continuous and intermittent auto-lubrication at various points is also featured.
Features:
Optional Features:
Model
UNIK I EC - 51
UNIK I EC - 61
UNIK I EC - 75
No. of stations
51
61
75
Tooling
D
BB
B
Tablet diameter (Max.) in mm
25
16
13
Depth of fill (Max.)
20
17
15
Tablets/hr (Max)*
3,67,200
4,39,200
5,40,000
Turret RPM (max)
60
Max. compression in ton
10
6.5
Upper Punch Penetration
1 – 8 mm
Electric motor
10 HP 1440 RPM, 208 V AC, 3 PHASE, 60 HZ
Force feeder motor
0.25 HP, 230 V, 960 RPM, 3 Phase
Machine size in mm
1024 ×1024 × 1800
Net weight in kg.
3700
