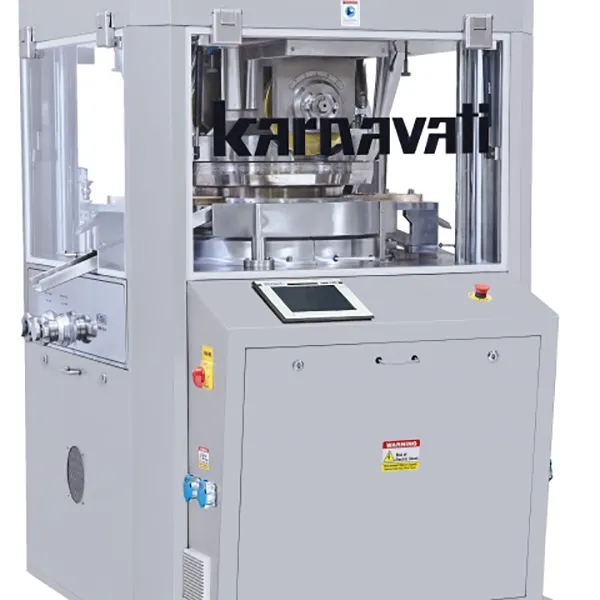

Simple Production Scale Double Sided Rotary Tablet Press
The UNIK II SE (Simple and easy) is a double rotary, compact and sturdy machine built on casted platform, body and center pillar. The turret drive through internal ring and pinion from gear box to turret ensures good control and free operation. All machine controls are provided outside the tableting zone. The Main & pre-compression is having fix capacity of 10 Ton.
The HPPS (hydraulic power pressure system) with precise pressure dial gauge, hand lever and excess oil reservoir is one of the most effective systems of providing the sufficient pressure for desired thickness & hardness of the tablet.
Unique feature of upper pressure rolls sliding assembly reflects our ability to interact with the end user operator. Solid pillars connecting the encased force feeder motor top plate and non-compression zone gives that extra strength needed to avoid vibrations and noise at high speed. Double side guided upper punch cam track, fully electroless nickel plated gives better punch control as a safety and reduces wear and tear.
Features:
Options:
Model
UNIK I SE - 37
UNIK I SE - 45
UNIK I SE - 61
No. of stations
37
45
61
Tooling
D
BB
B
Tablet diameter (Max.) in mm
25
16
13
Depth of fill (Max.)
20
17
Tablets/hr (Max)*
2,66,400
3,24,000
4,39,200
Turret RPM (max)
60
Max. compression in ton
10
6.5
Upper Punch Penetration
1 – 8 mm
Electric motor
10 HP 1440 RPM, 208 V AC, 3 PHASE, 60 HZ
Force feeder motor
0.25 HP, 230 V, 960 RPM, 3 Phase
Machine size in mm
1024 ×1024 × 1800
Net weight in kg.
1600
