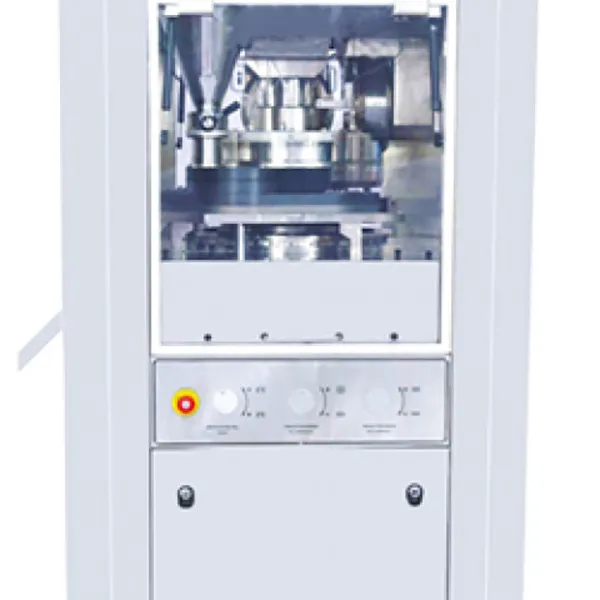

Production Scale Single Side Table Press -Exchangeable Turret
The revolutionary new NXi 30 tablet press has an optional EXCHANGEABLE COMPRESSION MODULE (ECM), which allows full change-over in less time and the ability to utilize D, B and BB tooling on a single machine.All product contact parts are included in this ISOLATED DUST TIGHT module, which is disconnected and removed in minutes. Another clean isolated module with the right tooling can now be installed and the machine is ready to produce the next batch.
Ideally suited for:
Features:
AFR / AWC - System
Operation through IPC Panel:
Model
UNIK NXI
No. of stations
30
37
45
Tooling
D
B
BB
Tablet diameter (Max.) in mm
25
16
13
Depth o fill (Max.)
20
17
15
Tablets/hr (Max)*
180000
222000
270000
Turret RPM (max)
25/100
Max. compression Force
10 ton
Max. Pre compression Force
4 ton
Upper punch penetration
2.5/8.0 mm
Pitch circle diameter
410 mm
Electrical Motor
10 HP , 480 V AC, 3 Phase , 60 HZ
Force feeder motor
0.5 H.P. 220 V A.C., 75 RPM, 50 HZ, 1 PH
Machine size in mm
1220 x 1143 x 2190
Net weight in kg.
4500
